Introducing the 'jockey jack'

Perfect for lifting heavy equipment or plant that needs to be static in location. This fully swivelling side winding jack offers the versatility of a jockey wheel with the power of a trailer jack.

Lift it, move it, lay it down...


The KJW6011 is a combination of our KPS415 Side Winding Jack & top selling KW011R low profile Wheel.


KARTT jockey jack is a powerful solution for vibrating plant equipment and where operators need to ensure that the machinery is safely grounded.


With a 750kg capacity per jack, the mounting plate secures directly onto the side of load or drawbar.


Simply swivel the jack up when grounded and re-deploy in moments.


Easy to manoeuvre, safe and secure.


Perfect for:


  • Plant and machinery
  • Mobile platforms and stages
  • Exhibition trailers

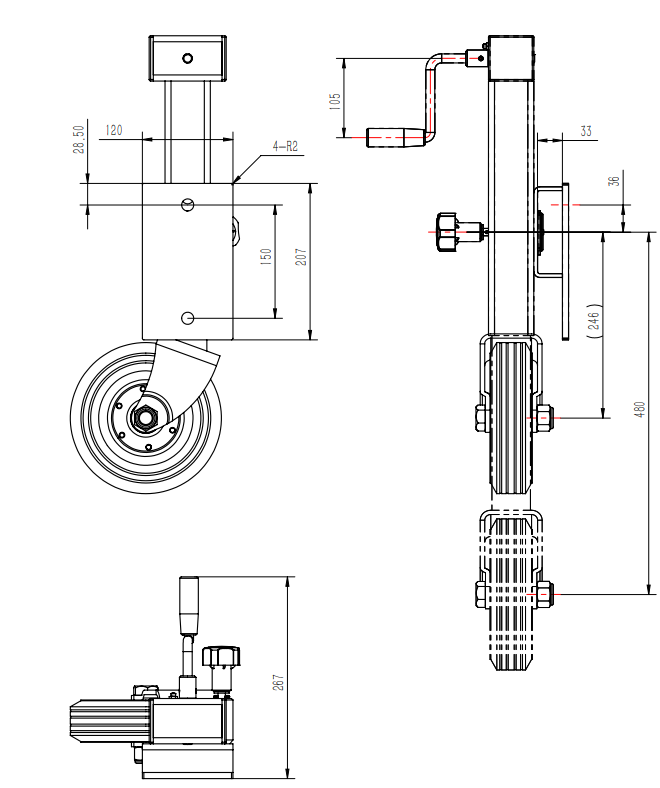

Specifications:



  • Tube size 60mm x 60mm x 4mm
  • 234mm length extension
  • 750kg Max Load
  • 150mm hole centres for M16 bolts
  • 11.80kg item weight
  • 8mm mounting plate
  • Quality zinc weather proof plating
  • HD 50mm x 200mm low profile powder coated wheel
  • Domed rivets
  • Grease nipple
  • 1 Year Professional Use Warranty
