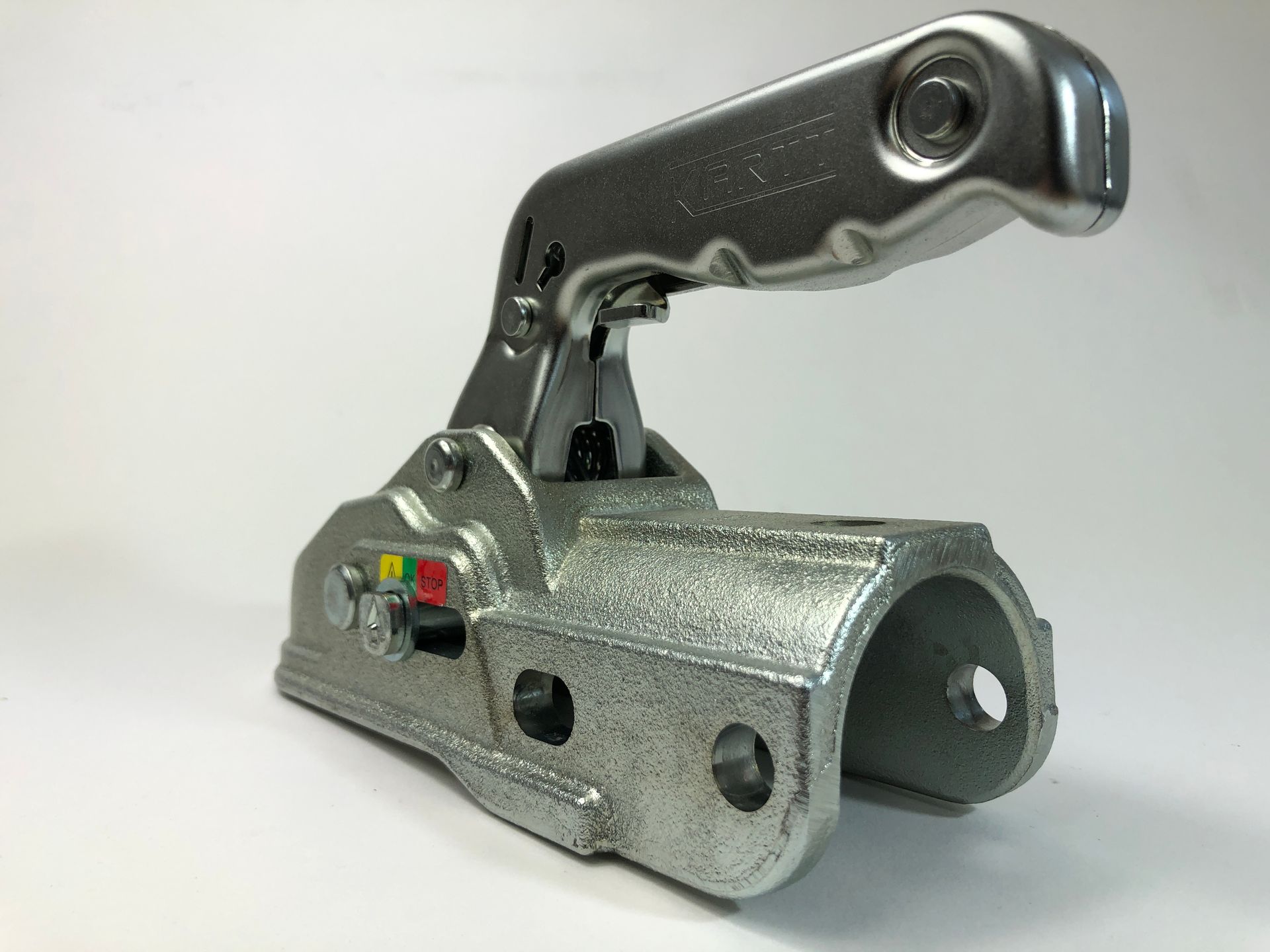

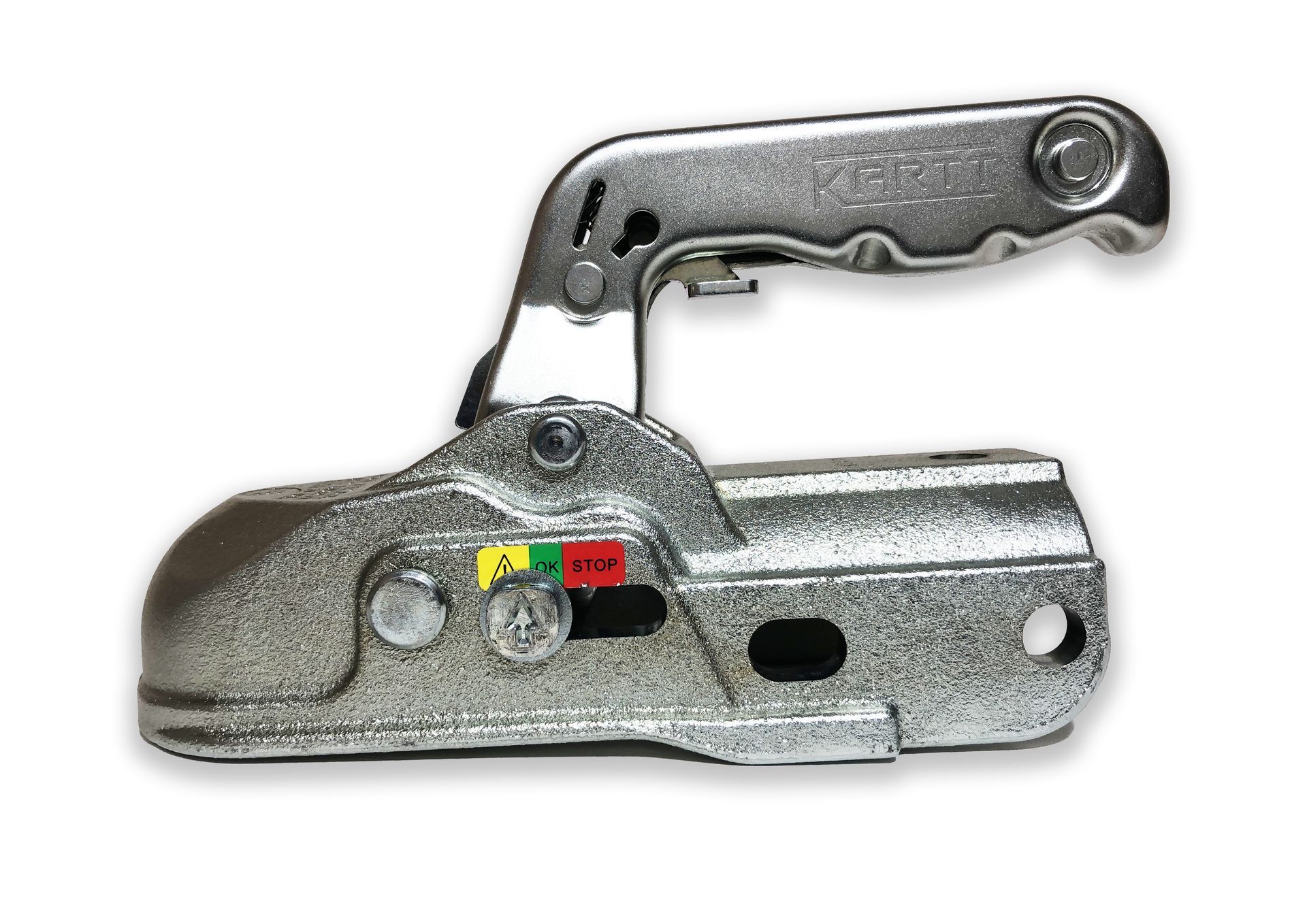

Coupling Head

Premium Coupling Head

With Universal Fitting & Compatability

The KARTT 3 tonne coupling head has been engineered by our British design team, cast and Made in Britain.



Designed to be universally compatible with a wide range of overrun couplings and a 50mm towball.



 KEY FEATURES:



  • R55 Type Approved - E11*55R02/02*12218**00*
  • Application up to 3000KG
  • Cast with pressed steel handle with zinc plated finish
  • Colour coded wear and correct attachment indicator


KARTT KCH3000

KARTT KCH3000R

KARTT KCH3000-KIT

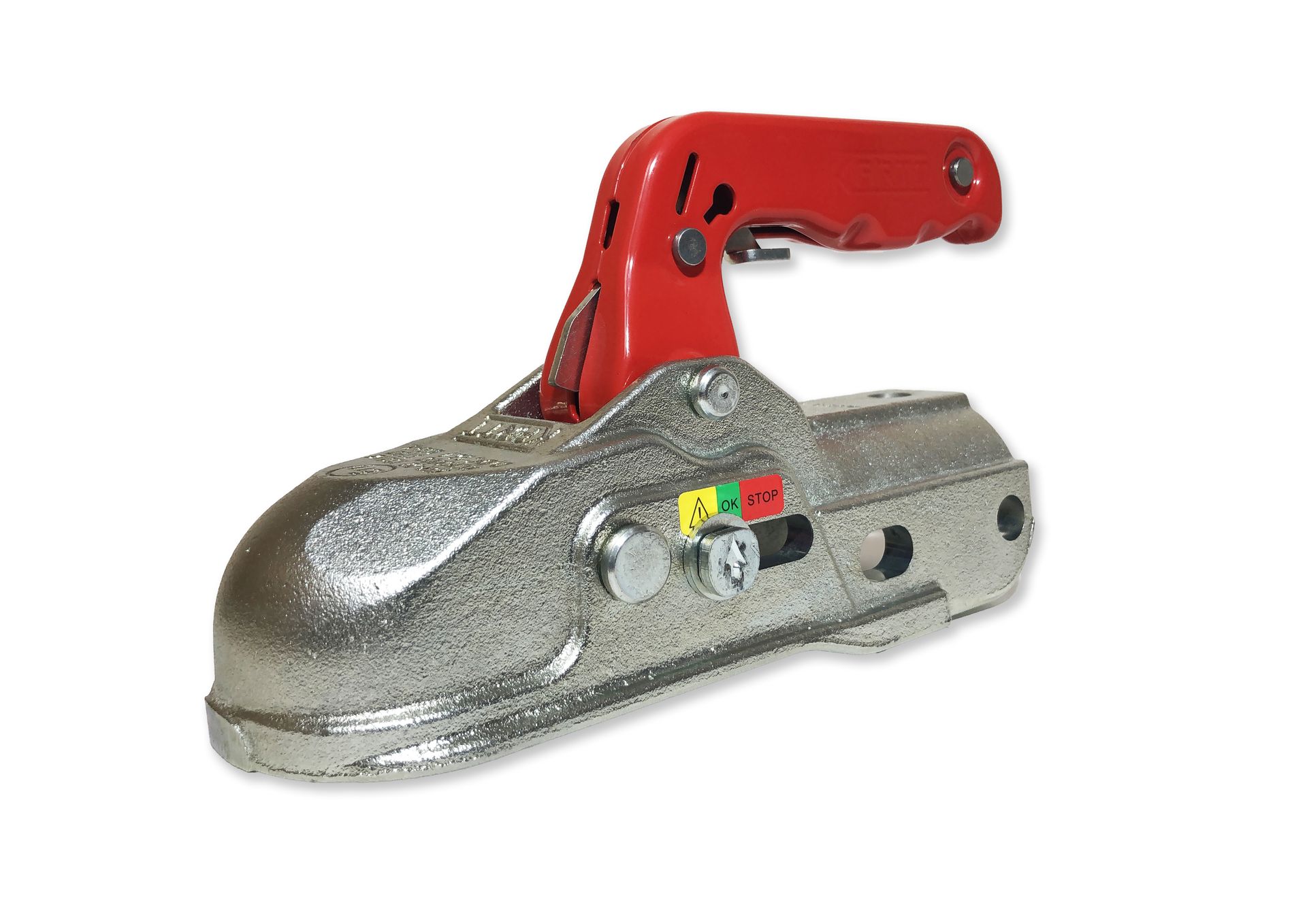

(available in Red too - KCH300R-KIT)

  • Max Load: 3000kgMax Nose Wgt: 150kg
  • Drawbar connection 35, 40, 45, 46, 50, 51mm / Round
  • Bolt Holes: 12.5 mm (M12)
  • Braked/Un braked: Braked
  • Item wgt: 2.38kg
  • Hole size 2 x 12.5mm
  • Hole pattern: Cross + horizontal
Read More
  • Max Load: 3000kg
  • Max Nose Wgt: 150kg
  • Drawbar connection 35, 40,
  • 45, 46, 50, 51mm / Round
  • Bolt Holes: 12.5 mm (M12)
  • Braked/Unbraked: Braked
  • Item wgt: 2.38kg
  • Hole size 2 x 12.5mm
  • Hole pattern: Cross + horizontal

Read More

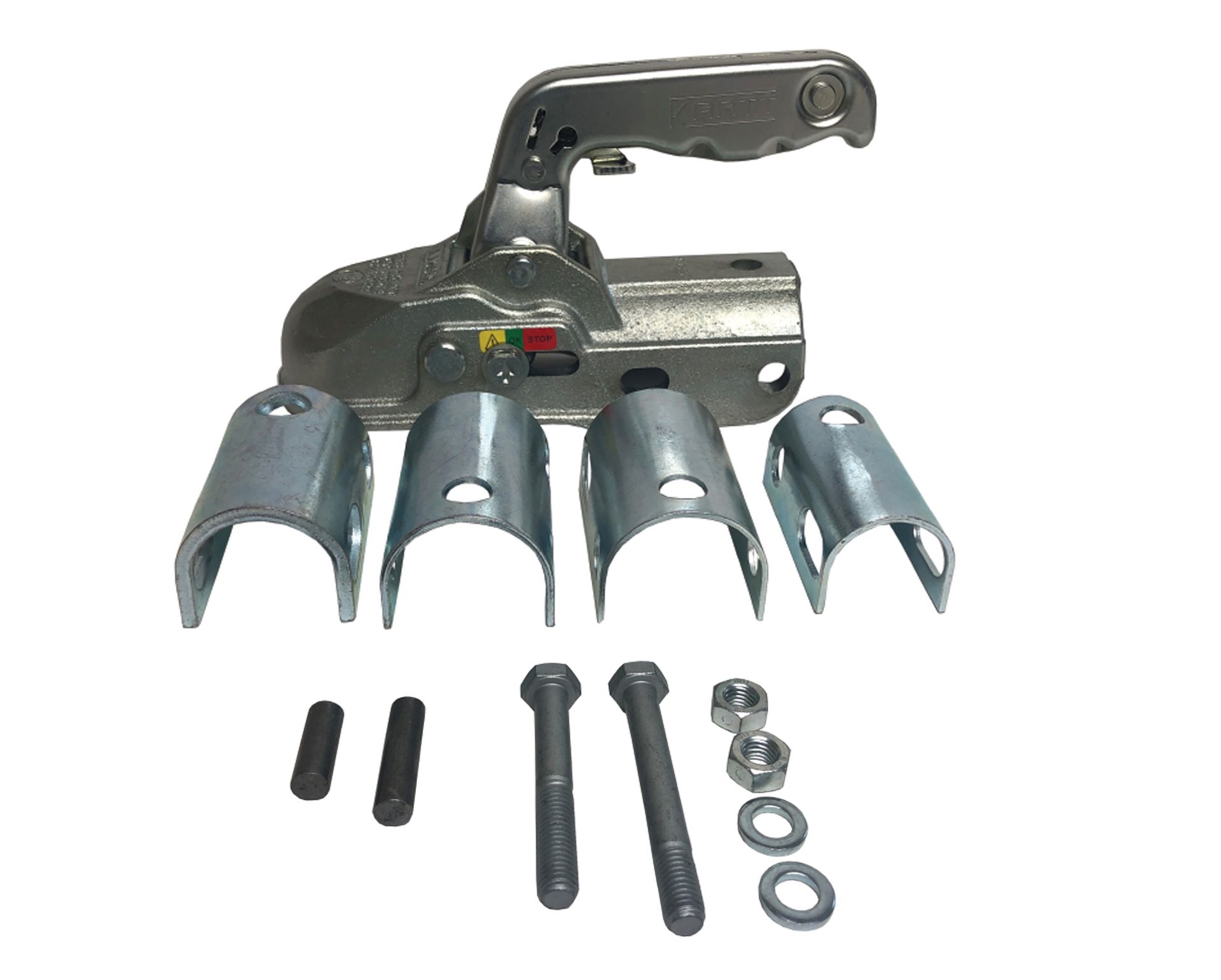

  • 50mm Coupling head KCH3000 with following kit:
  • Shim Sleeves
  • Draw bar adapters (35mm-50mm)
  • Pins
  • 2 x 90mm Fixing bolts
  • Locking nuts and washers


Read More

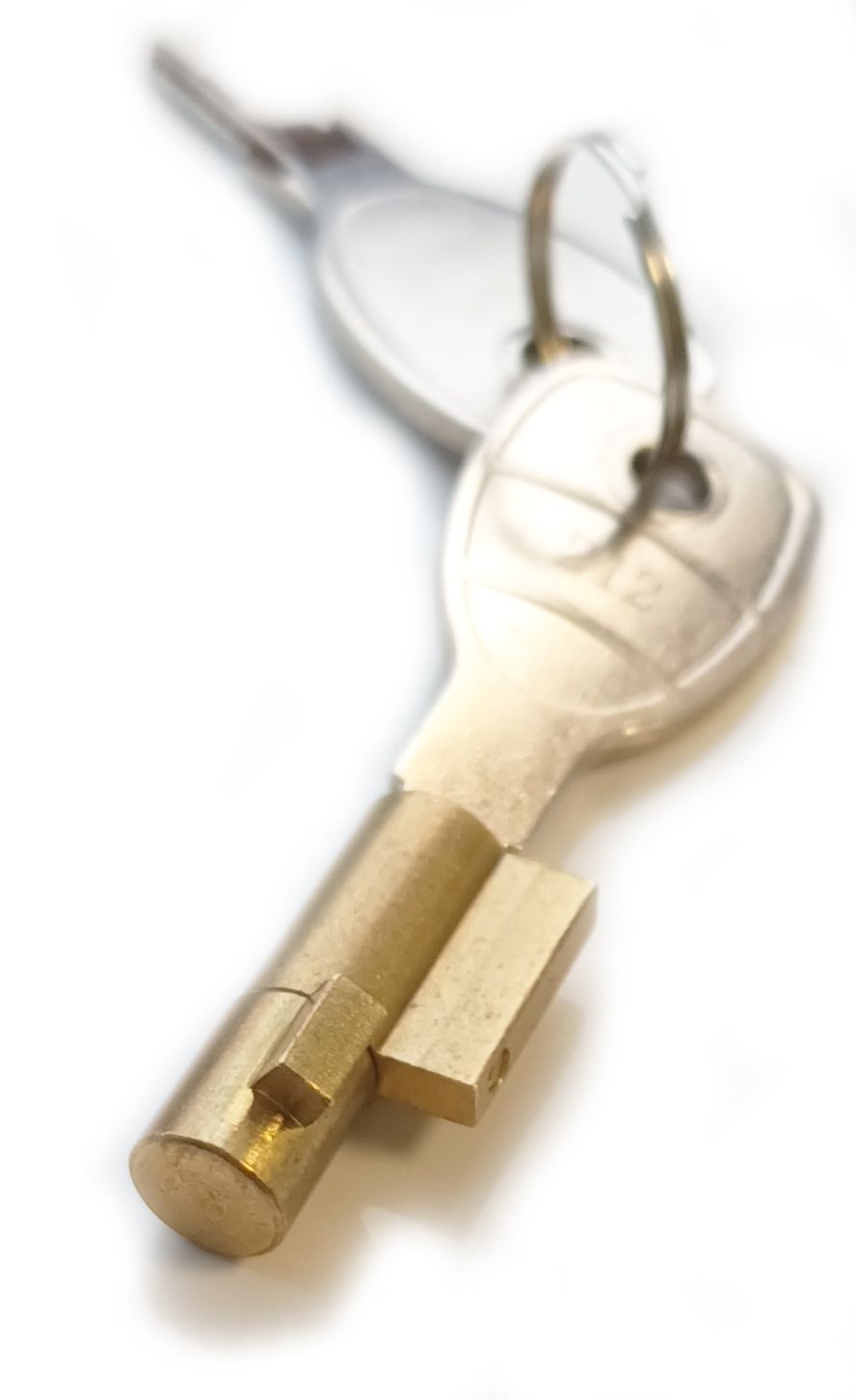

  • Lock & Key for Coupling Handle
  • Simple security device for peace of mind and extra safety


KARTT COUPLING HEADS
